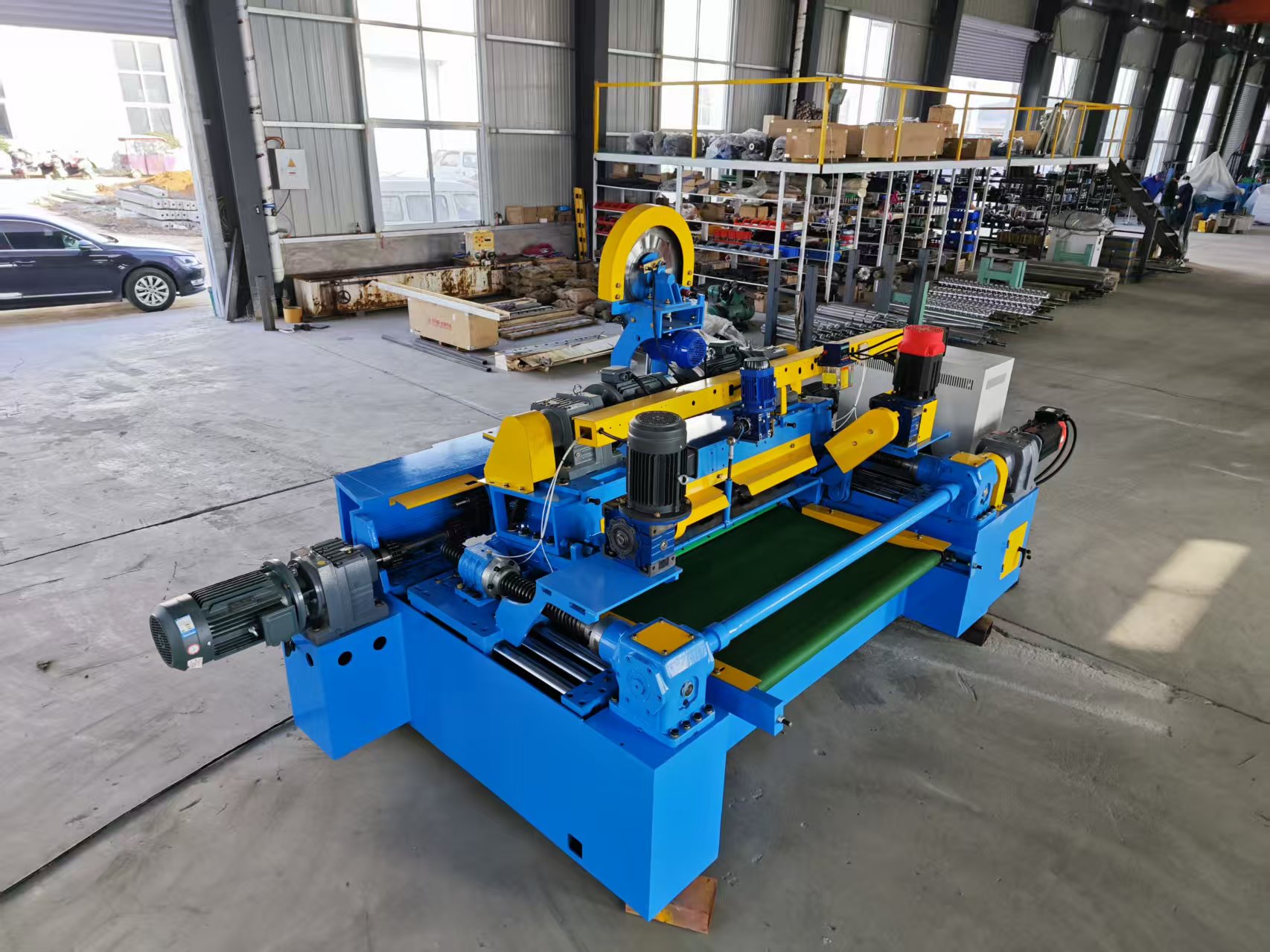

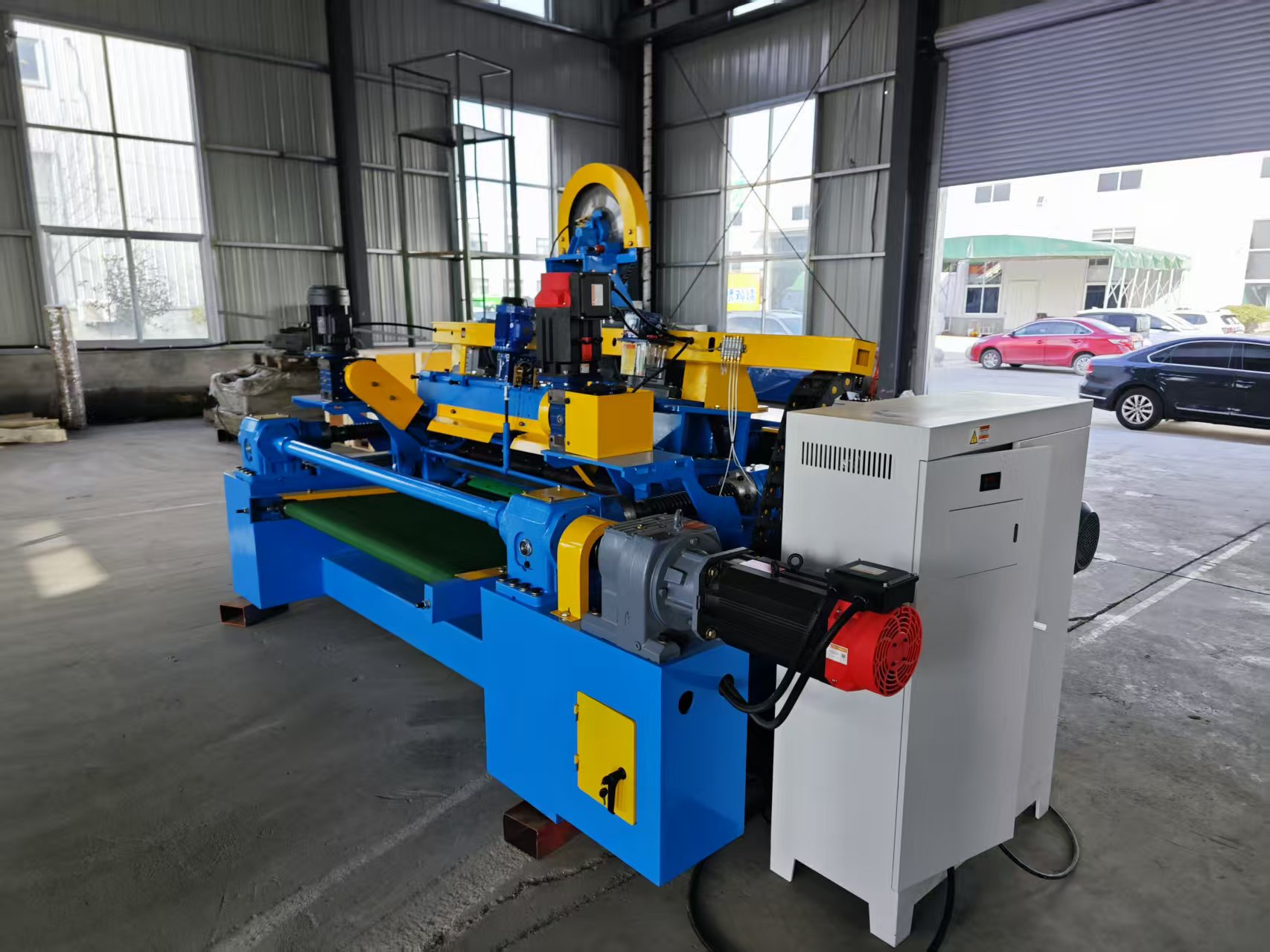

wood peeling machine to Brazil máquina de desenrolar madeira Brasil

Technical Specifications

• Max. Peeling Diameter: 500 mm
• Min. Peeling Diameter: 32 mm
• Roller Length: 1500 mm
• Single Roller Diameter: 125 mm
• Single Roller Length: 1500 mm
• Reducer Model: R87 Hardened Gear, 2 sets
• Motor Power: 7.5 kW × 2 sets
• Double Roller Diameter: 125 mm
• Double Roller Length: 1500 mm
• Reducer Model: R87 Hardened Gear, 2 sets
• Motor Power: 7.5 kW × 2 sets
• Screw Diameter: 90 mm
• Reducer Model: R87 Hardened Gear, 1 set
• Motor Power: 11 kW, Servo Motor
• Rubber Roller Diameter: 150 mm
• Rubber Roller Length: 1500 mm
• Reducer Model: RV90
• Motor Power: 2.2 kW
• Clipping Knife Size: 1500 × 90 × 12 mm
• Reducer Model: RV90
• Motor Power: 2.2 kW, Servo Motor
• Peeling Knife Size: 1500 × 180 × 16 mm (High-speed Steel)
• Peeling Speed: 40–80 m/min
• Core Removing System: Pneumatic
• Veneer Pressure System: Pneumatic

What Are the Different Features in This Model Wood Peeling Machine?

Wood Peeling Machine – Key Features & Advantages

1. Fully Reinforced Design (Whole machine, single & double rollers, knife carriage)

• What it means: The frame and key parts are thicker and strengthened.

• Why it matters: Machine runs smoothly with minimal vibration.

• Benefit: Stable performance, reduced deformation under heavy load, and stronger, more durable machine.

2. Double Precision Machining with CNC Gantry Center

• What it means: All major components (frame, mounting surfaces) are machined twice with high-precision CNC equipment.

• Why it matters: Ensures flatness and dimensional accuracy of parts.

• Benefit: Precise assembly and minimal error, reliable operation.

3. Rollers Ground Twice

• What it means: Roller surfaces are polished twice for perfect roundness.

• Why it matters: Reduces wobbling during operation.

• Benefit: Smooth operation and uniform veneer thickness.

4. Heat-Treated Screw (Quenching)

• What it means: The screw that drives the knife carriage is hardened through heat treatment.

• Why it matters: Stronger, wear-resistant, and long-lasting.

• Benefit: Consistent precision and longer service life, even after long-term use.

5. Three Guide Rails on Each Side

• What it means: Each side of the knife carriage system has three guide rails.

• Why it matters: Provides even load distribution and stable movement.

• Benefit: Smooth linear motion, higher precision, reduced wobbling, and longer machine life – ideal for large-diameter, high-intensity peeling operations.

This wood peeling machine is built for stability, precision, and durability. Its reinforced structure, high-precision machining, polished rollers, heat-treated screw, and three-guide-rail design ensure consistent, high-quality veneer production, even with large-diameter and high-density logs.

Suitable Wood Types for This Peeling Machine

This peeling machine features large-diameter peeling (up to 500 mm), high precision, excellent stability, reinforced knife carriage, heat-treated screw, and reinforced single/double rollers, making it suitable for peeling the following types of wood:

1. Hardwood

• Examples: Oak, Teak, Cherry, Walnut, etc.

• Characteristics: High density, tight fibers, requiring stable machine operation and strong knife carriage rigidity.

• Advantage: The machine’s reinforced design and three guide rails ensure high precision peeling and uniform veneer thickness for hardwoods.

2. Softwood

• Examples: Pine, Cedar, Eucalyptus, etc.

• Characteristics: Low density, easy to peel, but prone to warping or marks.

• Advantage: The high-rigidity knife carriage and precision-ground rollers reduce vibration, ensuring smooth and flat veneer surfaces.

3. Special/Engineered Wood

• Examples: Plywood core, eucalyptus core boards, composite wood, etc.

• Characteristics: Requires high precision and uniform thickness.

• Advantage: The machine’s precision machining, double-ground rollers, and heat-treated screw guarantee consistent quality.

This peeling machine is suitable for peeling most types of logs from softwood to hardwood, especially large-diameter, high-density logs where precision veneer thickness is critical.
